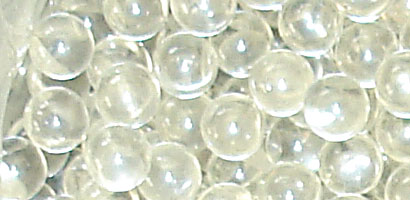

Glass Balls (Ground & Lapped)
| General Information: |
| Glass Balls are used in non-return valves, light-duty corrosion-resistant bearings, flowmeters and as insulators. Also available, 'Black Glass' balls with super precision tolerances in sizes from 1/16" to 1/4" diameter for use in medical and chemical flow- meters. |
| Mechanical Properties: |
|
| Density |
0.097 lbs/cub.in. |
| Specific Gravity |
2.7 |
| Max. Useful Temperature |
350 Deg.C |
| Colour |
Clear Glass (matt finish) |
| Size Range: |
|
| Imperial |
Stock sizes 3/32"" to 3/4" |
| Metric |
2mm to 20mm to special order |
| Tolerances: |
|
| |
Up to 3/8" |
Over 3/8" |
| Basic Dia.Tolerance |
±.004" |
±.004" |
| Sphericity |
.0003" |
.0006" |
| Corrosion Resistance: |
| Glass balls have excellent resistance to most chemicals except hydrofluoric acid. They are not suitable for applications involving thermal or mechanical shock. |
|
|
