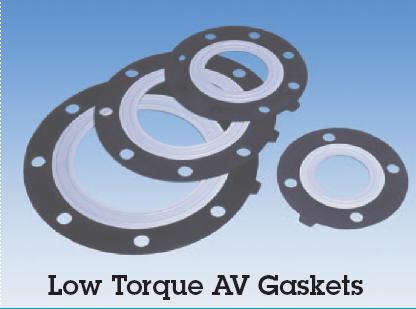

PVDF AV GASKET

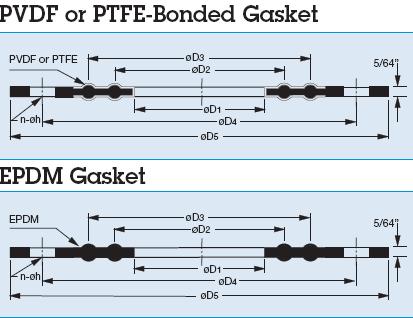

The AV Gaskets offer a unique double-convex ring design that gives optimum sealing with only 1/8 the torque commonly required with flat-faced gaskets. The PVDF and Teflon-bonded V gaskets employ a proprietary laminating process for bonding to EPDM. This produces the greater elasticity required for lower sealing torques.
Features
- Sizes 1/2" thru 12"
- Teperature Range: 14 to 250F
- EPDM (Hardness 65-66, Duratmeter A) PVDF or Teflon-bonded EPDM
- Perfect sealing at low bolt tightening torques gives longer gasket life
- Ideal for 150 lb thermoplastic piping systems, also metal or plastic lined metal system
|
