Insulation Kit
|
Kit Contents:

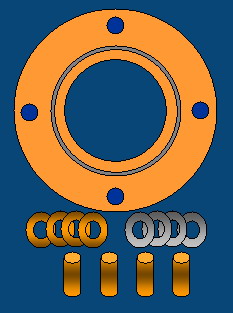

Each insulation kit contains an insulating gasket, insulating washers, steel washers and sleeves for each bolt or stud. Flange insulation gaskets are made in all sizes, pressure ratings and virtually all suitable materials.
The size and shape of each varies depending on the flange type, size and pressure.
All technical advice and recommendation are rendered by seller free of charge. While based on data believed to be reliable, seller assumes no responsibility.
|
|
*E & F Gaskets are made to ANSI Specifications unless otherwise specified
** Sleeves are full length as shown unless otherwise specified
|
|
GASKETS
|
SLEEVES **
|
WASHERS
|
|
Flange Size
|
ASA ANSI* Lb Class
|
"D" RTJ ASA Ring No
|
Number and Bolt Size
|
I.D.
(inches)
|
Length
(inches)
|
I.D.
(inches)
|
O.D.
(inches)
|
|
1"
|
150
|
R-15
|
4-1/2
|
1/2
|
1-5/16
|
9-16
|
1-1/8
|
|
300
|
R-16
|
4-5/8
|
5/8
|
1-9/16
|
11/16
|
1-5/16
|
|
400,600
|
R-16
|
4-5/8
|
5/8
|
2-1/16
|
11/16
|
1-5/16
|
|
900,1500
|
R-16
|
4-7/8
|
7/8
|
2-15/16
|
15/16
|
1-3/4
|
|
2500
|
R-18
|
4-7/8
|
7/8
|
3-7/16
|
15/16
|
1-3/4
|
|
Λ top
|
|
GASKETS
|
SLEEVES **
|
WASHERS
|
|
Flange Size
|
ASA ANSI* Lb Class
|
"D" RTJ ASA Ring No
|
Number and Bolt Size
|
I.D.
(inches)
|
Length
(inches)
|
I.D.
(inches)
|
O.D.
(inches)
|
|
1-1/4"
|
150
|
R-17
|
4-1/2
|
1/2
|
1-7/16
|
9/16
|
1-1/8
|
|
300
|
R-18
|
4-5/8
|
5/8
|
1-11/16
|
11/16
|
1-5/16
|
|
400,600
|
|
4-5/8
|
5/8
|
2-5/16
|
11/16
|
1-5/16
|
|
900,1500
|
R-18
|
4-7/8
|
7/8
|
2-15/16
|
15/16
|
1-3/4
|
|
2500
|
R-21
|
4-1
|
1
|
3-11/16
|
1-1/16
|
2
|
|
Λ top
|
|
GASKETS
|
SLEEVES **
|
WASHERS
|
|
Flange Size
|
ASA ANSI* Lb Class
|
"D" RTJ ASA Ring No
|
Number and Bolt Size
|
I.D.
(inches)
|
Length
(inches)
|
I.D.
(inches)
|
O.D.
(inches)
|
|
1-1/2"
|
150
|
R-19
|
4-1/2
|
1/2
|
1-9/16
|
9/16
|
1-1/8
|
|
300
|
R-20
|
4-3/4
|
3/4
|
1-13/16
|
13/16
|
1-9/16
|
|
400,600
|
R-20
|
4-3/4
|
3/4
|
2-7/16
|
13/16
|
1-9/16
|
|
900,1500
|
R-20
|
4-1
|
1
|
3-1/16
|
1-1/16
|
2
|
|
2500
|
R-23
|
4-1-1/8
|
1-1/8
|
4-3/16
|
1-3/16
|
2-3/16
|
|
Λ top
|
|
GASKETS
|
SLEEVES **
|
WASHERS
|
|
Flange Size
|
ASA ANSI* Lb Class
|
"D" RTJ ASA Ring No
|
Number and Bolt Size
|
I.D.
(inches)
|
Length
(inches)
|
I.D.
(inches)
|
O.D.
(inches)
|
|
2"
|
150
|
R-22
|
4-5/8
|
5/8
|
1-11/16
|
11/16
|
1-5/16
|
|
300
|
R-23
|
8-5/8
|
5/8
|
1-15/16
|
11/16
|
1-5/16
|
|
400,600
|
R-23
|
8-5/8
|
5/8
|
2-11/16
|
|
|
