Kynar® PVDF Tri packs

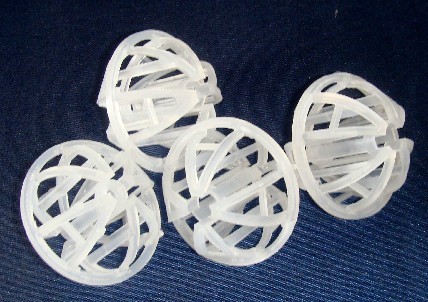

Kynar® PVDF Tri packs is a hollow spherical column packing constructed of a unique network of ribs, struts, and drip rods. Kynar® PVDF Tri packs geometry was totally revolutionary and unprecedented at the time of its 1978 introduction and it continues to be the packing to which all others are compared. Kynar® PVDF Tri packs offers reliable and predictable loading of your tower which means reliable and predictable performance. In addition to the superior geometric shape,
Tri-Packs are made of PP, PVC, CPVC, Kynar®, Halar
SPECIFICATIONS/PROPERTIES for Kynar® PVDF Tri packs
Properties Table
|
Size (in.)
|
1"
|
1 ¼”
|
2"
|
3 ½”
|
Geometric
Surface Area
(ft2/ft3)
|
85
|
70
|
48
|
38
|
Packing
Factor
(1/ft)
|
28
|
25
|
16
|
12
|
Void
Space
(%)
|
90
|
92
|
93.5
|
95
|
Bulk Density
(lb/ft3)
(PP)
|
6.2
|
5.6
|
4.2
|
3.3
|
Material
|
Polypropylene
|
(PP)
|
|
TopEx® |
(LCP) |
Polyethylene
|
(PE)
|
|
Kynar® |
(PVDF)
|
Polypropylene
Glass-Filled
|
(PPG) |
|
Halar® |
(ECTFE) |
| Noryl® |
(PPO)
|
|
Teflon® |
(PFA)
|
Polyvinylchloride
|
(PVC)
|
|
Tefzel® |
(ETFE)
|
CorzanTM
|
(CPVC)
|
|
Tefzel®
Glass-Filled
|
(ETFE-G)
|
| Other plastics are available upon request. |
|
