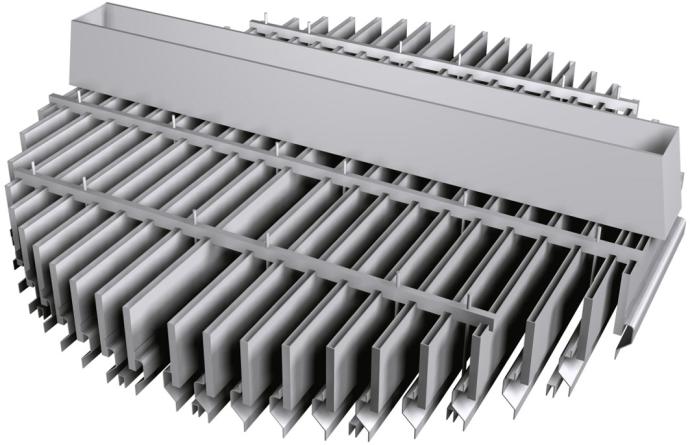

Trough Type Liquid distributor/ Redistributor



 Trough Type Liquid distributor/ Redistributor is replaced by a sump,
Feed enters the sump, which divides it proportionately to the troughs. orifices
for liquid can be located either on the base or on the wall of the troughs.

Distributor Points are also located at the centerline of the distributor by providing
tubes in the center of the sump.

Achieving adequate sealing is critical because of the large number of joints at the
sump to trough connection. All joints are gaskets for adequate sealing.

This distributor rests on a ledge/ support ring. the redistributor includes riser caps
and a wall wiper.

Column diameter: >250mm (10inches)


Max turndown ratio: 10:1

Liquid rates between 0.75 -30m3/m2.h
Low to medium fouling
