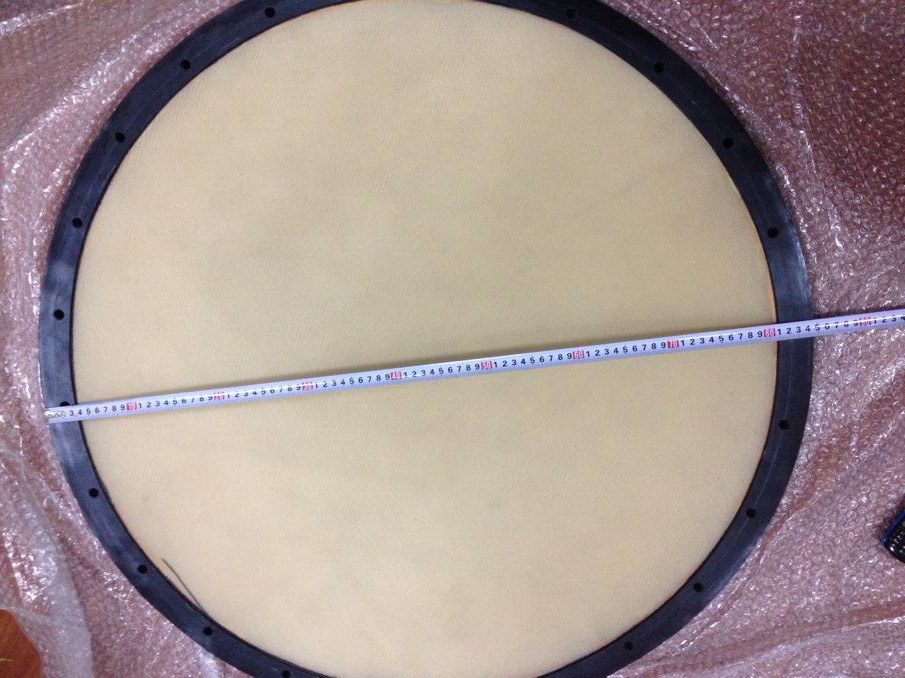

SARAN Net with EPDM gaskets

SARAN Net with EPDM gaskets
ID: 850mm
One set including the following:
3layers of SARAN –F5001 (64MESH)
3layers of SARAN –F312 (12MESH)
EPDM gasket

1.The OD of the EPDM gaskets= 828mm
2.Bolt Circle Diameter = 798 mm
3. Numbers of the holes= 24
4. The diameter of the holes= 11 mm
5. The diameter of SARAN cloth= 940 mm
