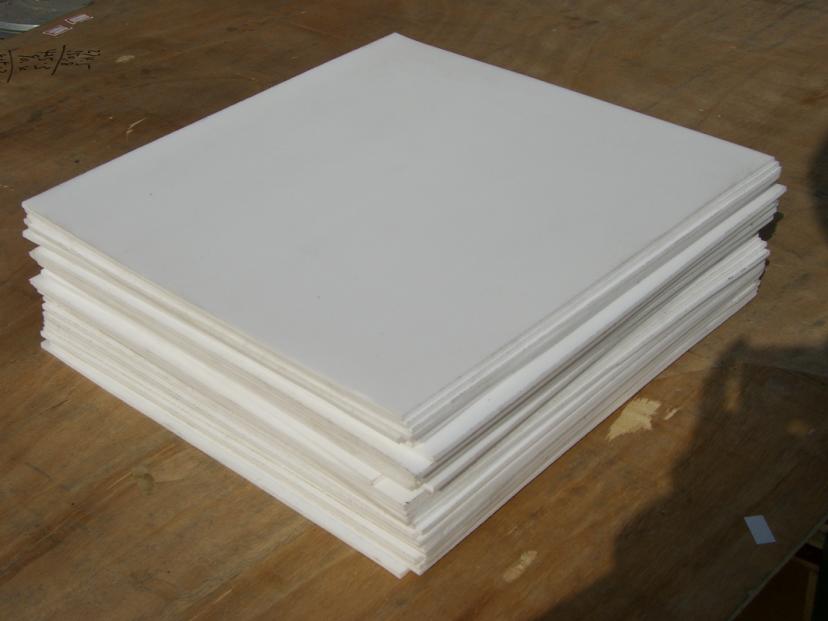

PTFE sheet, PTFE SHEET, virgin PTFE sheet
Features: PTFE molded sheet molding process by suspension PTFE resin with good corrosion resistance, aging resistance, low coefficient of friction,
Using a wide range.
Main purpose: Machinable making gaskets, seals, lining shelves, scraper, guide, and a variety of frequencies used in electrical insulation parts, bridge bearing slide.
1) Material: 100% Virgin PTFE
2) Tensile strength: >15Mpa
3) Elongation at break: >200%
4) Density: 2.1-2.3g/cm3
5) Break down voltage: 10KV/mm
6) Temp resist: -180℃ ~ +260℃
7) For mold pressed sheet
a) Size: 1000 x 1000mm,1200 x 1200mm,thickness: 2 - 70mm
b) Size: 1500 x 1500mm,thickness: 4 - 70mm
c) Size: Maximum 1800mm x 1800mm
8) For skived sheet
a) Width:1000 - 2000mm (special sizes could be ordered)
b) Length no limited, thickness: 0.2 - 6mm
|
Size
|
thickness
|
|
mm
|
Tolerance
|
|
150×150
|
1.0～100
|
±0.30～±0.50
|
|
250×250
|
1.5～100
|
±0.30～±0.50
|
|
300×300
|
1.5～100
|
±0.30～±0.50
|
|
450×450
|
1.5～100
|
±0.30～±0.50
|
|
600×600
|
2～100
|
±0.30～±0.50
|
|
800×800
|
2～100
|
±0.30～±0.50
|
|
1000×1000
|
3～100
|
±0.30～±0.50
|
|
1200×1200
|
3～100
|
±0.30～±0.50
|
|
1600×1600
|
5～40
|
±0.40～±0.80
|
|
1000×2000
|
5～40
|
±0.40～±0.80
|
|
1800×1800
|
5～40
|
±0.40～±0.80
|
|
