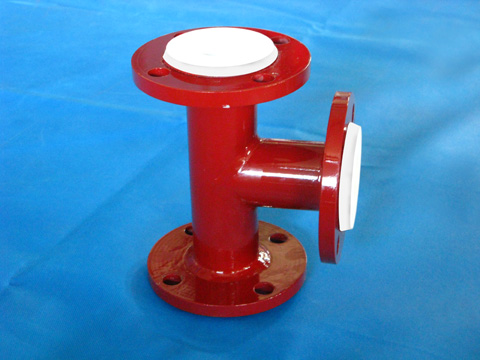

PTFE LINED EQUAL TEE
TCI specialized in the following categories of PTFE products including:
PTFE paste pushing and pressing pipes; PTFE steel-lined composite
pipes and pipe fittings, valves series; PTFE bellows,expansion series;
PTFE products of equal pressure molding;PTFE hoses coated by
Stainless steel wire and other coating
PTFE LINED EQUAL TEE
Flange : ANSI 150LBS
| Nominal Size |
F |
A |
t |
G.W.(kg) |
| Inch |
mm |
| 1" |
25 |
48 |
90 |
6 |
4.0 |
| 1-1/2" |
40 |
68 |
115 |
6 |
6.6 |
| 2" |
50 |
87 |
120 |
6 |
10.5 |
| 2-1/2" |
65 |
100 |
130 |
7 |
14.8 |
| 3" |
80 |
117 |
140 |
7 |
17.6 |
| 4" |
100 |
151 |
150 |
8 |
27.0 |
| 5" |
125 |
175 |
190 |
8 |
35.0 |
| 6" |
150 |
203 |
230 |
8 |
43.0 |
| 8" |
200 |
256 |
250 |
8 |
61.0 |
| 10" |
250 |
311 |
250 |
9 |
106.5 |
| 12" |
300 |
365 |
280 |
10 |
150.0 |
|
|
|
| |
|
