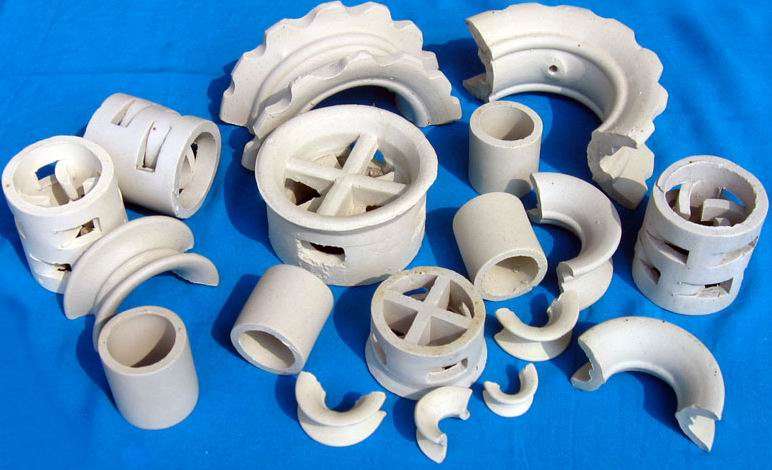

Ceramic pall ring,Raschig ring,Saddle ring,CMR
Ceramic random packing (we TCI can make Ceramic pall ring, Ceramic Raschig ring,
Ceramic Saddle ring, Ceramic Super saddle ring, Ceramic Glitch CMR ring,etc)
has excellent acid resiseance and heat resistance. It can stand up to corrosion of various
inorganic acids, organic acids and organic solvents except HF and can be used in high
or low temperature, It can be used as drying,absorbing, cooling and regenerating tower
packing in chemical, metallurgic, coal gas and air separation industry.etc.
|
SiO2
|
Al2O3
|
SiO2+ Al2O3
|
Fe2O3
|
CaO
|
MgO
|
K2O+Na2O
|
Inne
|
|
>69%
|
15-23%
|
>92%
|
<1%
|
<0,25%
|
<0,2%
|
2-4%
|
<0,1%
|
|
Ceramic random tower packing Main specification：
|
|
Name
|
Type
|
Diameter×Height×Thickness
mm
|
Surface Area
m2/m3
|
Void Space
%
|
Bulk Density
Kg/m3
|
No.elements
n/m3
|
Packing Factor
m-1
|
|
Rasching ring
|
Φ16
|
16×16×3
|
250
|
66
|
820
|
178000
|
870
|
|
Φ25
|
25×25×3
|
147
|
78
|
510
|
42000
|
310
|
|
Φ38
|
38×38×4
|
100
|
80
|
458
|
12000
|
195
|
|
Φ50
|
50×50×5
|
80
|
81
|
465
|
5600
|
156
|
|
Φ76
|
76×76×9
|
62
|
75
|
575
|
1700
|
147
|
|
Cross-partition ring
|
Φ50
|
50×50×5
|
135
|
50
|
520
|
5600
|
1080
|
|
Φ80
|
80×80×8
|
120
|
53
|
780
|
2100-2500
|
806
|
|
Φ100
|
100×100×10
|
110
|
56
|
750
|
900-1000
|
626
|
|
Φ150
|
150×150×15
|
60
|
58
|
680
|
270-300
|
308
|
|
Rasching ring
|
Φ25
|
25×25×3
|
210
|
73
|
630
|
36000
|
540
|
|
Φ38
|
38×38×4
|
140
|
75
|
590
|
12000
|
332
|
|
Φ50
|
50×50×5
|
100
|
78
|
520
|
4900
|
210
|
|
Φ76
|
76×76×9
|
70
|
80
|
470
|
1500
|
137
|
|
Intalox saddles
|
Φ16
|
16×2×2
|
450
|
70
|
710
|
382000
|
1311
|
|
Φ25
|
25×19×3
|
250
|
74
|
610
|
84000
|
617
|
|
Φ38
|
38×30×4
|
164
|
75
|
590
|
25000
|
389
|
|
Φ50
|
50×40×5
|
142
|
76
|
560
|
9300
|
323
|
|
Φ76
|
76×57×9
|
92
|
78
|
520
|
1800
|
194
|
|
Supper Intalox
|
Φ25
|
25×19×3
|
160
|
78
|
530
|
52000
|
337
|
|
Φ38
|
38×30×4
|
102
|
80
|
480
|
16000
|
199
|
|
Φ50
|
50×40×5
|
88
|
81
|
|
