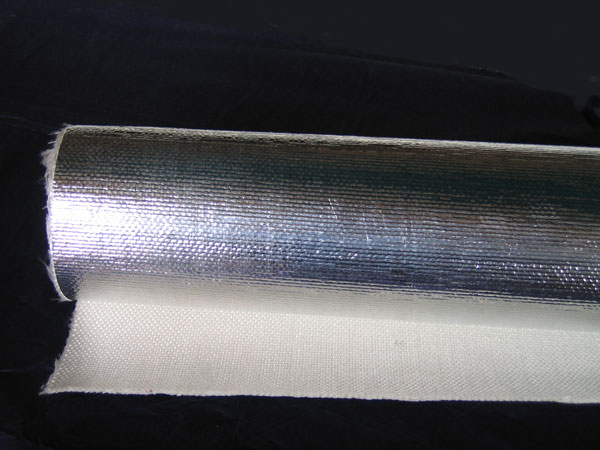

Aluminum Foil laminated fiberglass cloth By applying uniquely advanced compound processing and using fiberglass as the base cloth and special fire-resistant adhesive agent, our product has the excellent properties such as the smooth surface on the aluminum foil, strong light reflection, good stretching resistance in length and breadth, non-breath ability, non-breath ability, non-water permeability, good hermetic and weather resistance.
Application:This cloth is mainly used for thermal insulating materials of the steam heating pipelines, sound -proof materials in construction and the protective layer of super glass wool with excellent functions of fire -resistance, anti-corrosion, heat isolation and sound absorbability, and it can also be used as the packing materials for the export equipment with the functions of damp proof, mildew proof, fire -existence and anticorrosion.
3.In the field, this cloth can mainly used for wrapping materials of oil transportation pipelines and the steam pipelines in the petrochemical industry with the same effects as mentioned above
Specification:
|
Style
|
Warp density
End/cm
|
Weft density
End/cm
|
Thickness
mm
|
Weight
g/m2
|
Weave
|
Width
mm
|
Tensile strength
N/50x200mm
|
Length per roll
m/roll
|
|
ALCTX600
|
8±1
|
6±1
|
0.8±0.08
|
600±60
|
Plain
|
1000
|
1360X850
|
30-50
|
|
ALCTX650
|
8±1
|
4.4±0.5
|
1.0±10.1
|
650±65
|
Plain
|
1000
|
1530X930
|
30-50
|
|
ALCTX1000
|
5.6±1
|
3.2±0.5
|
1.5±0.15
|
1000±100
|
Plain
|
1000
|
1870X1700
|
30
|
|
ALCTX1400
|
5.6±1
|
2.5±0.5
|
2.0±0.2
|
1400±140
|
Plain
|
1000
|
3650X1950
|
30
|
|
ALCTX2000
|
5.0±1
|
1.7±0.2
|
3.0±0.2
|
1800±180
|
Plain
|
1000
|
4900X2050
|
30
|
|
ALETX600
|
8±1
|
6±1
|
0.8±0.08
|
600±60
|
Plain
|
1000
|
1600X1000
|
30-50
|
|
ALETX650
|
8±1
|
4.4±0.5
|
1.0±10.1
|
650±65
|
Plain
|
1000
|
1800X1100
|
30-50
|
|
ALETX1000
|
5.6±1
|
3.2±0.5
|
1.5±0.15
|
1000±100
|
Plain
|
1000
|
2200X2100
|
30
|
|
ALETX1400
|
5.6±1
|
2.5±0.5
|
2.0±0.2
|
1400±140
|
Plain
|
1000
|
4300X2300
|
30
|
|
AlETX2000
|
5.0±1
|
1.7±0.2
|
3.0±0.2
|
1800±180
|
Plain
|
1000
|
5900X2400
|
