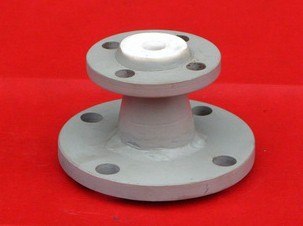

PTFE Lined Concentric Reducers
Our TCI PTFE Lined Concentric Reducers are mainly
used in the chemical plants, for connecting the pipes,
Polytetrafluoroethylene (PTFE) is a synthetic fluoropolymer
of tetrafluoroethylene that finds numerous applications.
.png)
Detailed Product Description
PTFE LINED CONCENTRIC REDUCER
Flange:ANSI 150LBS
| Nominal Size |
F |
F' |
A |
t |
t' |
G.W.(kg) |
| Inch |
mm |
| 1"×1/2" |
25×15 |
48 |
32 |
100 |
6 |
6 |
2.2 |
| 1"×3/4" |
25×20 |
48 |
40 |
100 |
6 |
6 |
2.6 |
| 1-1/2"×1" |
40×25 |
68 |
48 |
100 |
6 |
6 |
3.6 |
| 2"×1" |
50×25 |
87 |
48 |
100 |
6 |
6 |
4.5 |
| 2"×1-1/2" |
50×40 |
87 |
68 |
100 |
6 |
6 |
5.2 |
| 2-1/2"×1" |
65×25 |
100 |
48 |
100 |
7 |
6 |
6.0 |
| 2-1/2"×1-1/2" |
65×40 |
100 |
68 |
100 |
7 |
6 |
6.8 |
| 2-1/2"×2" |
65×50 |
100 |
87 |
100 |
7 |
6 |
7.6 |
| 3"×1" |
80×25 |
117 |
48 |
100 |
7 |
6 |
6.8 |
| 3"×1-1/2" |
80×40 |
117 |
68 |
100 |
7 |
6 |
7.6 |
| 3"×2" |
80×50 |
117 |
87 |
100 |
7 |
6 |
8.2 |
| 3"×2-1/2" |
80×65 |
117 |
100 |
100 |
7 |
6 |
9.6 |
| 4"×1" |
100×25 |
151 |
48 |
100 |
8 |
6 |
8.6 |
| 4"×1-1/2" |
100×40 |
151 |
68 |
100 |
8 |
6 |
9.6 |
| 4"×2" |
100×50 |
151 |
87 |
100 |
8 |
6 |
10.6 |
| 4"×3" |
100×80 |
151 |
117 |
100 |
8 |
7 |
12.5 |
| 5"×2" |
125×50 |
175 |
87 |
150 |
8 |
6 |
13.5 |
| 5"×3" |
125×80 |
175 |
117 |
150 |
8 |
7 |
14.5 |
| 5"×4" |
125×100 |
175 |
151 |
150 |
8 |
8 |
12.5 |
| 6"×2" |
150×50 |
203 |
87 |
150 |
8 |
6 |
15.5 |
| 6"×3" |
150×80 |
203 |
117 |
150 |
8 |
7 |
17.6 |
| 6"×4" |
150×100 |
203 |
151 |
150 |
8 |
8 |
19.2 |
| 8"×3" |
200×80 |
256 |
117 |
150 |
8 |
7 |
25.6 |
| 8"×4" |
200×100 |
256 |
151 |
150 |
8 |
8 |
26.2 |
| 8"×6" |
200×150 |
256 |
203 |
150 |
8 |
8 |
32.0 |
| 10"×4" |
250×100 |
311 |
151 |
200 |
9 |
8 |
39.8 |
| 10"×6" |
250×150 |
311 |
203 |
200 |
9 |
8 |
42.5 |
| 10"×8" |
250×200 |
311 |
256 |
200 |
9 |
8 |
46.5 |
| 12"×6" |
300×150 |
365 |
203 |
|
