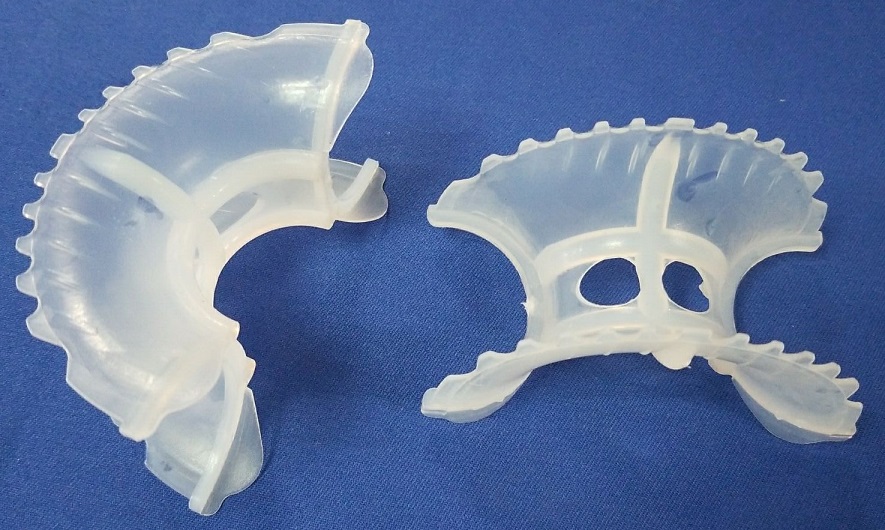

ETFE Super Saddle rings
.png)
Ethylene tetrafluoroethylene (ETFE) is a fluorine-based plastic. It was designed to have high corrosion resistance and strength over a wide temperature range. ETFE is a polymer and its source-based name is poly(ethene-co-tetrafluoroethene). ETFE has a relatively high melting temperature, excellent chemical, electrical and high-energy radiation resistance properties. When burned, ETFE releases hydrofluoric acid.
polyvinylidene fluoride (PVDF), (perfluoroalkoxy polymer) PFA, Fluorinated ethylene propylene (FEP), ethylene-tetra-fluoro-ethylene (ETFE), Ethylene ChloroTriFluoroEthylene (ECTFE), Polytetrafluoroethylene (PTFE).
Applications of ETFE Super Saddle rings:
:
-
Absorption, scrubbing, and stripping services
-
Pulp and paper service, such as bleach plant absorbers
-
Versatile alternative to ceramic saddles
Performance of ETFE Super Saddle rings:
Versatile Standard Packing for PP,PVC,CPVC Super intalox saddles
| Size |
OD *H * T mm
|
Quantity
n /m3 |
Bulk Density
kg/m3 |
specific surface area
m 2 /m 3 |
void rate
ε
％
|
dry packing factor
m- 1 |
| 1.5" |
38mm |
38*19*1.2 |
57200 |
160 |
207 |
0.90 |
108 |
| 2" |
50mm |
50*25*1.5 |
6710 |
117 |
108 |
0.93 |
69 |
| 3" |
76mm |
76*38*2 |
1480 |
94 |
89 |
0.94 |
52 |
* Data sheet for Super saddle ring |
