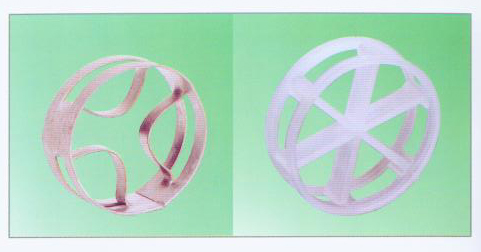

QH-1 Super Mini Ring
Features:
Low pressure loss, high efficiency, high elastic load, long service life.
Materials:
stainless steel, carbon steel, aluminum , Plastic , PP, PVC, CPVC, PVDF, PTFE etc
Spec.
| Model NO. |
Spec. D×H×δ
mm |
Specific surface α
m2/m3 |
Void ratio ε
% |
Piling NO. n
m-3 |
Dry filler factor F
m1 |
| Dg25 |
25×9 |
160 |
88 |
177000 |
287 |
| Dg38 |
38×12.7 |
140 |
90 |
54530 |
175 |
| Dg50 |
50×17 |
120 |
92 |
17390 |
140 |
| Dg75 |
75×23 |
100 |
94 |
7730 |
112 |
|
