SS304 pall ring, SS316 pall ring, SS410 pall ring
.jpg) -2.jpg)

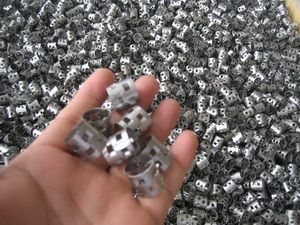

Metal Pall Ring (SS304, SS316, SS410 etc) Packing is widely used in all kinds of separation, absorb plants, constant decompress plants, compounding ammonia plant, decarbonization , desulfuration ，separation of ethylbenzene, separation of isooctane/ methylbenzene, Absorption, Aeration, Degassing, Desorption, Distillation, Stripping, Heat Recovery, Extraction, Various separation and absorption applications at atmospheric pressure and under vacuum, where a low pressure drop is critical,H2S, NH3 & SO2 Absorption & Stripping, Steam Stripping, Quench towers, Direct contact cooling.
| Absorption |
Aeration |
Degassing |
Desorption |
| Distillation |
Stripping |
Heat Recovery |
Extraction |
Material:
Metal Pall rings are available in a wide range of materials,such as stainless steel,carbon steel,304,304L,410,316,316L,aluminum,bronze,and other alloy.
Tech data of Metal Pall Ring Packing:
Specifications
(mm) |
D*H*δ
(mm) |
Bulk number
(n/m³) |
Specific surface area
(m²/m³) |
Bulk density
(m²/m³) |
Void volume
(m³/m³) |
Dry packing factor
(m-1) |
| Dg16 |
16*16*0.5 |
143000 |
239 |
216 |
0.928 |
299 |
| Dg25 |
25*25*0.5 |
55900 |
219 |
414.2 |
0.934 |
269 |
| Dg38 |
38*38*0.7 |
13000 |
129 |
312 |
0.945 |
153 |
| Dg50 |
50*50*0.8 |
6500 |
112.3 |
312.0 |
0.949 |
131 |
| Dg76 |
76*76*1 |
1870 |
68 |
216 |
0.96 |
2 |
*Note: All of the following bulk density refer to stainless steel(AISI304) in the material thickness shown.Other wall thickness are available on request.
RING, NO MODIFIER
TYPE : PALL
MATERIAL : 304 SS
APPLICATION : H2S STRIPPERS
FOR H2S STRIPPER V-68-11
AS PER FOLLOWING TECHNICAL SPECIFICATION
TYPE : PALL RING
MATERIAL : STAINLESS STEEL , SS-304
NOMINAL SIZE : 1 INCH
WALL THICKNESS : 0.6 MM
BULK DENSITY : 30 LBS/CUFT
SURFACE AREA : 65 SQ FT/CU FT
NOTE : TO BE PACKED IN STEEL DRUMS.
|
