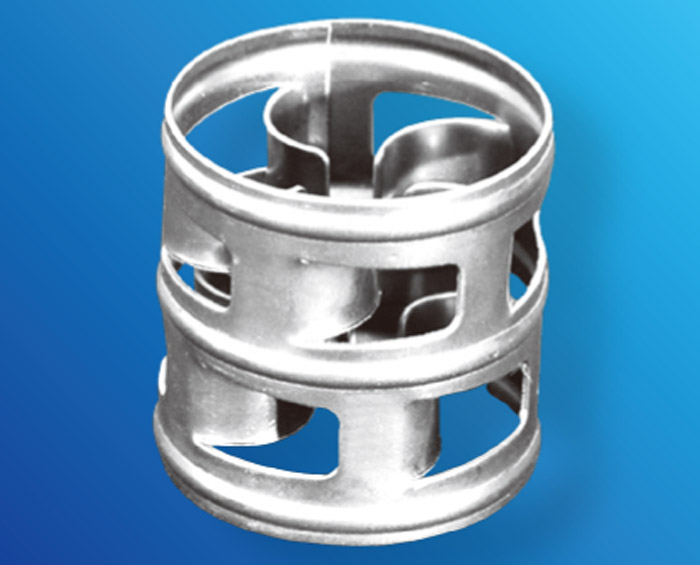

Hy-pak Pall ring
.png)
HY-PAK is an improved design of Pall ring, it has better advantaged than Pall rings, such as:
1) with a larger flux and low pressure drop.
2) to further improve the ring of gas and liquid distribution in favor of mass transfer process.
3) with a wide range of operating flexibility.
4) high mechanical strength.
Specifications for Hy-pak:
|
Diameter
(mm)
|
Pieces
(m-3)
|
Weight
(kg/m3)
|
Void
%
|
Packing
Factor
|
|
76
|
1100
|
208
|
97.7
|
49
|
|
50
|
3670
|
224
|
97.4
|
59
|
|
38
|
9390
|
280
|
97
|
85
|
|
25
|
29900
|
312
|
96.5
|
141
|
HETP estimates for Hy-pak compare others distillatoin applications:
| |
Pressure Range |
general packing |
Estimating HETP |
| System |
If known |
Type/style/make |
Ft or In. marked |
| ISO-Octane/Toluene |
100mm Hg |
Hy-pak No.2 |
2.0-2.7 |
| Same |
740mm Hg |
Hy-pak No.1 |
0.7-2.7 |
| Para/Ortho Xylene |
740mm Hg |
Metal Intalox No.25 |
0.8-1.8 |
| Same |
740mm Hg |
Metal Intalox No.40 |
1.3-1.55 |
| Same |
Vacuum |
Metal Intalox No.50 |
1.75-2.15 |
| Chlorinated HC |
Vacuum |
Metal intalox No.25 |
2 |
| Chlorinated HC |
Vacuum |
Metal Intalox No.40 |
2.4 |
| Chlorinated HC |
740mm Hg |
Metal Intalox No.50 |
3.5 |
| ISO-Octane/Toluene |
740mm Hg |
Pall ring,1" Metal |
1.0-2.0 |
| ISO-Octane/Toluene |
740mm Hg |
Pall ring,1.1/2" Metal |
0.75-1.0(3.5) |
| ISO-Octane/Toluene |
740mm Hg |
Pall ring, 2" Meta |
1.5-2.2 |
| Methanol/Water |
740mm Hg |
Pall ring,1" Metal |
0.65-0.8 (1.2) |
| Isopropanol/Water |
740mm Hg |
Pall ring,1" Metal |
0.6-1.5 |
| Benzene/Toluene |
740mm Hg |
Pall ring,1" Metal |
1.0-1.5 |
| Acetone/Water |
740mm Hg |
Pall ring,1" Metal |
0.9-1.2(1.4) |
| Same |
- |
Flexiring,1" Metal |
1.6-1.8(2.3) |
| Same |
- |
Flexiring,2" Metal |
1.8-2.2(2.4) |
| Same |
- |
Koch Sulzer metal |
0.45-0.9 |
| Light Hydrocarbon |
400psia |
General packing |
approx 0.75 |
| Propane/Butane |
235psia |
General packing |
approx. 0.80 |
| Chlorobenzene/ethylbenzene |
50mm Hg |
Montz structured metal |
5in-17in |
| Chlorohexane/n-Heptane |
1atm |
#2 Nutter ring |
22in-30in |
| Chlorohexane/n-Heptane |
5psia |
#2 Nutter ring |
25in-30in |
| various sys. |
Vacuum |
Goodloe Metal, various |
5in-8in |
| ISO-Octane/Toluene |
1atm |
Cascade Mini-ring, #3 |
22in-28in |
| ISO-Octane/Toluene |
1atm |
Cascade Mini-ring, #2 |
18in-24in |
| H-naphtha/light gas oil |
Unknown |
Gempak 1/2" crimp |
13in-15in |
| H-naphtha/light gas oil |
Unknown |
Gampak 1" Crimp |
22in-27in |
| H-naphtha/light gas oil |
Unknown |
Gampak 1/4" Crimp |
8in-10in |
| ethylene Clichloride/benzene |
1atm |
ACS-X Mesh |
4in-9in |
| Methylcyclohexane/Toluene |
1atm |
ACS-X 200 Mesh |
3.5in-12in |
| Unknown |
Unknown |
Koch Structured flexipac |
17in |
| General/Average |
Unknown |
Koch/Sulzer ® structured |
3in-9in |
| Ortho/para |
16mm Hg Abs |
Koch/Sulzer ® structured |
5in-16in |
| Ortho/para |
100mm Hg Abs |
Koch/Sulzer ® structured |
4.5in-8in |
|
|
| New Product |
 |
Polypropylene Tellerette 3K
ETFE +25% Glass Tri packs 2inch
|
| |
|
|
|
|
| |
|
|
|
|
|
