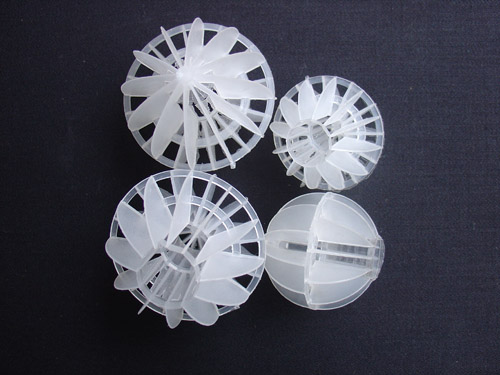

Plastic Polyhedral Hollow Ball Packing
Plastic Polyhedral Hollow Ball Packing
Feature: The surface of Hollow Ball Packing is larger than other packing. It has some advantages such as larger surface area, larger throughout, high void, high capacity.
Material: polypropylene, reinforced polypropylene, PVC, CPVC, PVDF
Plastic Polyhedral Hollow Ball Packing is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF).
It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60 to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
Technical data
|
Specification (mm)
|
Surface area (m²/m³)
|
Free volume (%)
|
Bulk density (kg/m³)
|
Number per m³
|
|
ø25
|
460
|
84
|
145
|
64000
|
|
ø38
|
325
|
87
|
125
|
25000
|
|
ø50
|
236
|
90
|
105
|
11500
|
|
ø76
|
150
|
92
|
90
|
3000
|
7 years experience in producing Polyhedral Hollow Ball Packing,
Size : 25mm 38mm 50mm 76mm
Material: PP PE PVC CPVC PVDF etc
|
