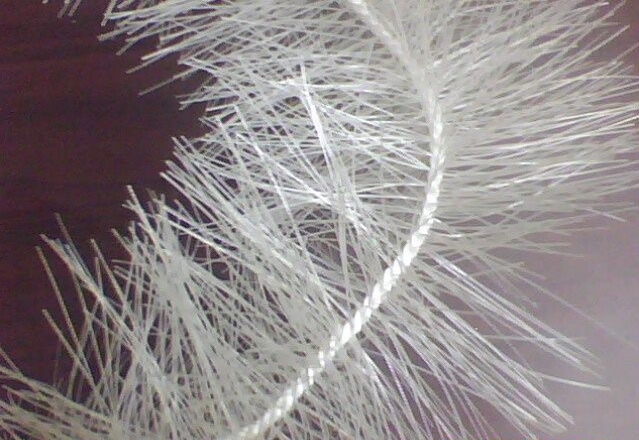

Stereo elastic filler
Stereo elastic filler
Screened three-dimensional elastic filler in polyolefin and polyamide several corrosion-resistant, temperature resistance, anti-aging high-quality varieties, mixed with hydrophilic, adsorption, thermal oxide and other additives, using a special drawing, silk, wool of the system process, will be interspersed wire fixation in the corrosion-resistant, high-intensity center of ropes, due to excellent choice of material and process formulations, hard & soft moderate, so that even a three-dimensional filament array of radiation state, made a suspended three-dimensional elastic filler monomer , fill in the effective area can be covered with three-dimensional full-uniform stretch, so that gas, water, biofilm is fully mixed infiltration of contacts for exchanges, biofilms not only uniform implantation in each root filament, it maintains a good activity and gap variability, but also in the running to get more and more large specific surface area, but also for good metabolism, this phenomenon is the current characteristics and other filler match.
Bio-contact oxidation method is attached to the carrier (commonly known as fillers) on the biofilm mainly of a highly efficient purification of organic wastewater treatment process. Has been widely used in textile printing and dyeing, wool knitting, beer, food, petrochemical, fertilizer waste water, medicine and life sewage treatment, and obtained obvious environmental benefit, social benefit and economic benefits. In recent years, with an increase in the amount of water required, together with river water, lake water and other surface waters to varying degrees by a large area of organic pollution, contact oxidation method using micro-polluted water pretreatment has also achieved remarkable results. Where the organic pollution of wastewater, sewage, almost contact oxidation process can be used for processing. Over the years, the technology because of highly efficient energy-saving, small size, resistance to shock loading, convenient operation and management of the unique advantages of the design department has been widely used, well received by the user's welcome and favor.
Biofilm carriers packing is to contact the central part of the oxidation process, which directly affects the treatment effect, oxygenation properties, infrastructure investment, operation cycles and costs. Introduction of factory production of three-dimensional elastic filler and hybrid-type three-dimensional elastic filler is my factory by a variety of conditions, a large number of tests and long productive running results show that an ideal carrier for the filler. Due to the unique structure of the packing material and excellent technology choice, it has a long service life, oxygenation performance, power consumption is small, start hanging film quickly, Stripping updates easy, high resistance to shock loading, a significant treatment effect, run management is simple, non-blocking, non-Pellet and low-cost advantages. The packing process water conditions in different applications, adjustable wire thickness and density of the different assembly forms, fully applicable to a variety of wastewater anaerobic, and oxygen, the aerobic treatment process and so on. The filler is a first at home and abroad, its structure, performance with international advanced level.
Stereo elastic filler
1Unit string 44 or 33
2.Surface area 296 or 244
3Unit weight 3.4 or 3.1
4Film forming weight 65 or 56.
Stereo elastic filler
Product brief introduction
Elastic filler is not block, fast biofilm and easy knockout, good resistant to impact and loads, great oxygenation capacity.
Capability parameters
|
Specification (mm
|
Φ150×0.5
|
Φ175×0.5
|
|
Unit string/m3
|
44
|
33
|
|
Specific surface area(m2/m3)
|
296
|
244
|
|
Unit weight kg/m3
|
3.4
|
3.1
|
|
Film forming weight kg/m3
|
65
|
56
|
Uses:
Is widely used in bio-contact oxidation pond, hydrolysis and acidification tanks for bio-filler.
Features:
Three-dimensional elastic filler compared with the rigid cellular type, pore variability, it is not blocked; compared with the soft filler type, material long life, non-stick linked group; and semi-soft filler compared to large surface area and biofilm rapidly , low price. Therefore, the filler can be confirmed that, following a variety of rigid class packing, soft and semi-soft filler filler classes after the fourth generation of energy-efficient new packing.
Specifications:
Diameter 150mm 180mm 200mm
Ordering Information:
Ordering Please specify the required length of flexible-type filler, Cube, etc.
|
